Wednesday, June 6, 2012

30W CNC CO2 laser is operational!


This is the first cut on fiber board. I had to make about 50 passes at full power to cut threw the 3mm depth. I used Inkscape & Laserengraver extension to capture the outline of a jpeg of the Jobs/Apple logo and then created the Gcode.  Video showing the process with Inkscape to capture the outline and create the Gcode. After creating the Gcode in Inkscape I used G-code sender to send the NC file to the Grbl Arduino Uno to start cutting.



Sunday, November 27, 2011

Video of first stages of the CNC project.

video

3 Axis CNC Project Started!

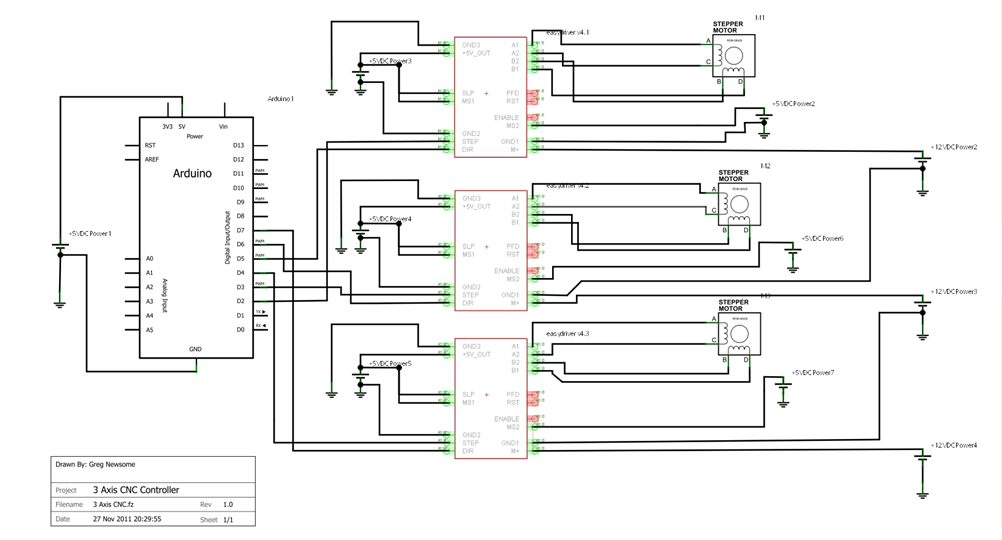

Here is my first stab at creating a CNC machine from scratch. I'm using an Arduino UNO with Grbl as the G-Code interpreter. I have three EasyDivers as the motor drivers which are interfaced to the Arduino UNO which is controlling the EasyDrivers and stepper motors.
